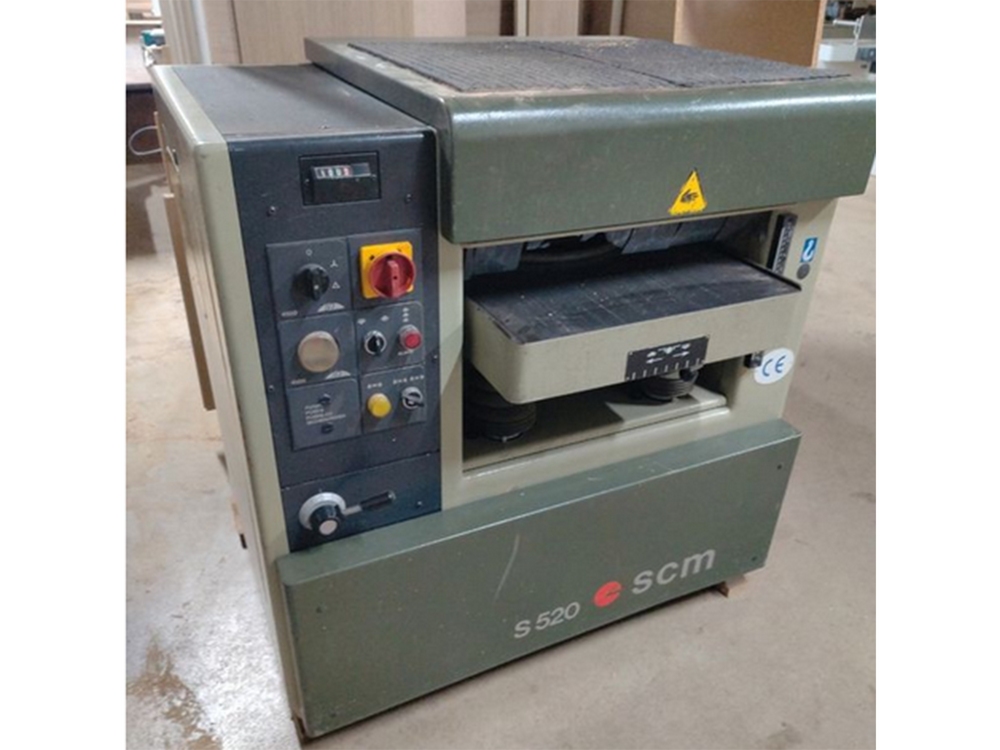

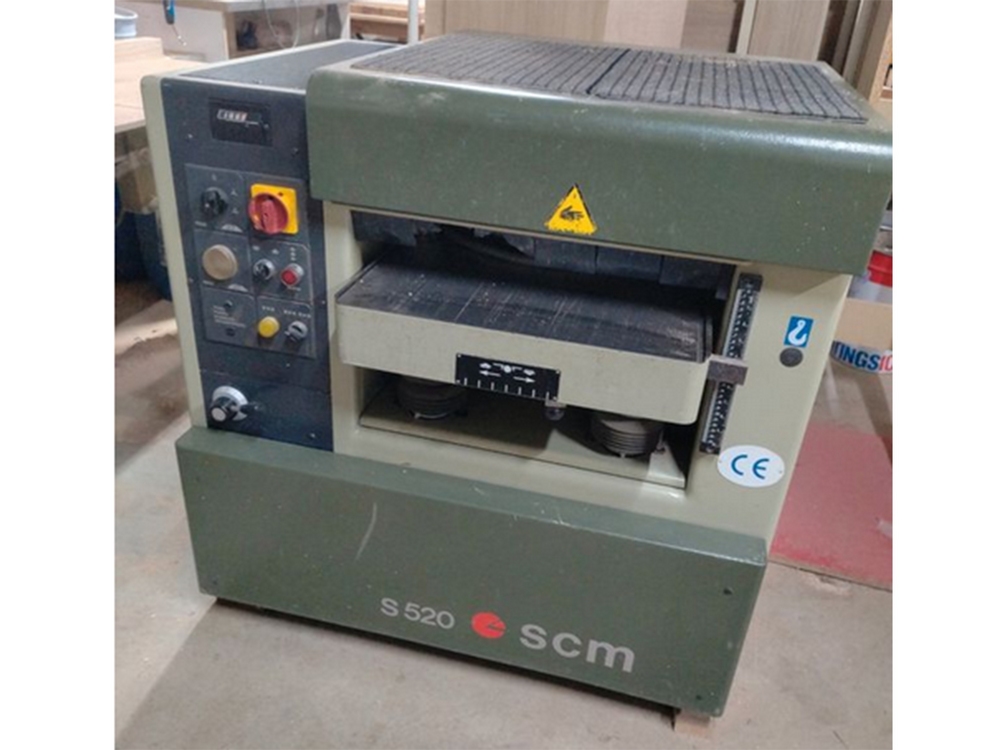

Thickness planer SCM S520 - C3263
Technical characteristics
3 Infeed rollers : 1st steel notched at infeed, 2nd and 3rd rubber
Shaft diameter 120 mm, 4 irons
Usable width : 520 mm
Usable height : 3 to 250 mm
Electric rapid or step-up/down
Display of table height on mechanical digital counter (SIKO)
Motor 5.5 HP
4 feed speeds : 5 ; 8 ; 12 and 18 m/min
Ideal machine for joinery, precious woods and low thicknesses.
Power and Motors
Voltage: 400 V
Pluging: Three-phased
Power: 5 Kw
Motor: 5,5 CV
Overall dimensions
